Refrigerant circuit
- Refrigerant circuit consisting of reciprocating compressor
- Fan-condenser assembly
- Filter dryer
- Capillary tubes
- Insulated air/air and air/refrigerant heat exchangers with integrated stainless steel (copper soldered) condensate separators
- Hot gas bypass controller
Condensate drainage
- ECO-DRAIN 30 electronically-controlled condensate drain with tap on the condensate inlet, incl. cold surface insulation
Electrical equipment and displays
- Mechanical dew point trend display
- Electric equipment to EN 60204-1: lockable main switch with integrated mains isolation device

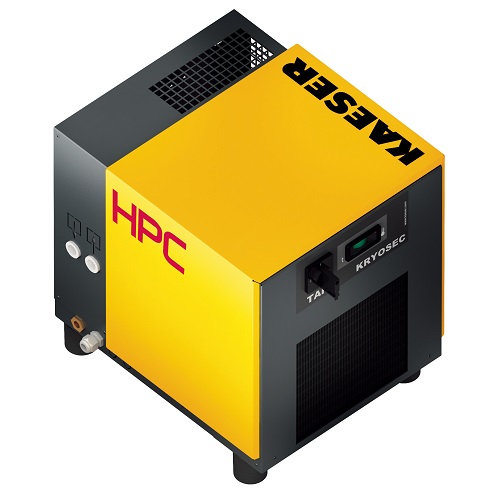

Enclosure
- Powder-coated unit enclosure with removable hood and machine mounts
- Prepared for wall mounting (only TAH series)
Connections
- Design includes strain-relieved main connector cable (without plug)
- Internally wired
- Bulkhead pipe fitting for external condensate drain connection
Documentation
- Includes operating manual and CE marking (EU version)
Optional: "Pressure dew point warning" floating contact
- Electronic thermostat with floating output terminal
- Mounted inside the unit, ready for operation
- Signal can be picked up on-site directly at the output
- Associated upper and lower switching thresholds configurable
Optional: Condensate drain, incl. floating contact
- Alternatively equipped with ECO-DRAIN 31 electronic condensate drain with floating alarm contact
- Signal can be picked up directly on the drain
